How to Install Your Mineral Stream Products

Simple Steps for a Luxurious & Healthy Shower Experience

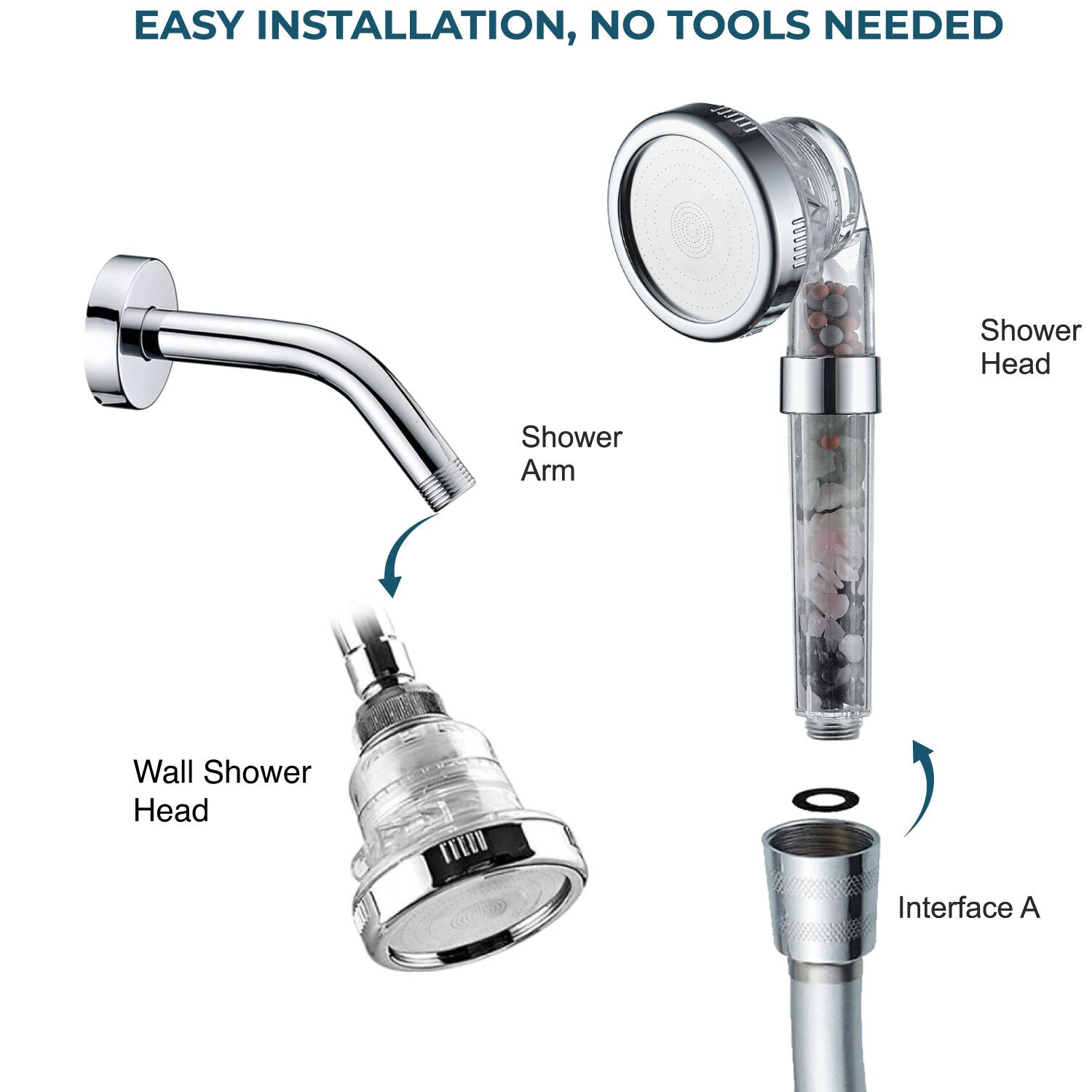

Installing Your Mineral Stream Showerhead

1. Wall / Fixed Shower Head

  • Unscrew your existing shower head from the shower arm.
  • Screw the MineralStream filtered shower head directly onto the shower arm. Hand-tighten until secure.

2. Handheld ShowerHead

  • Take the Interface A connector and attach it to the end of your shower hose. Hand-tighten until secure.
  • No tools needed. Connect the MineralStream handheld shower head to the Interface A connector. Hand-tighten until secure.

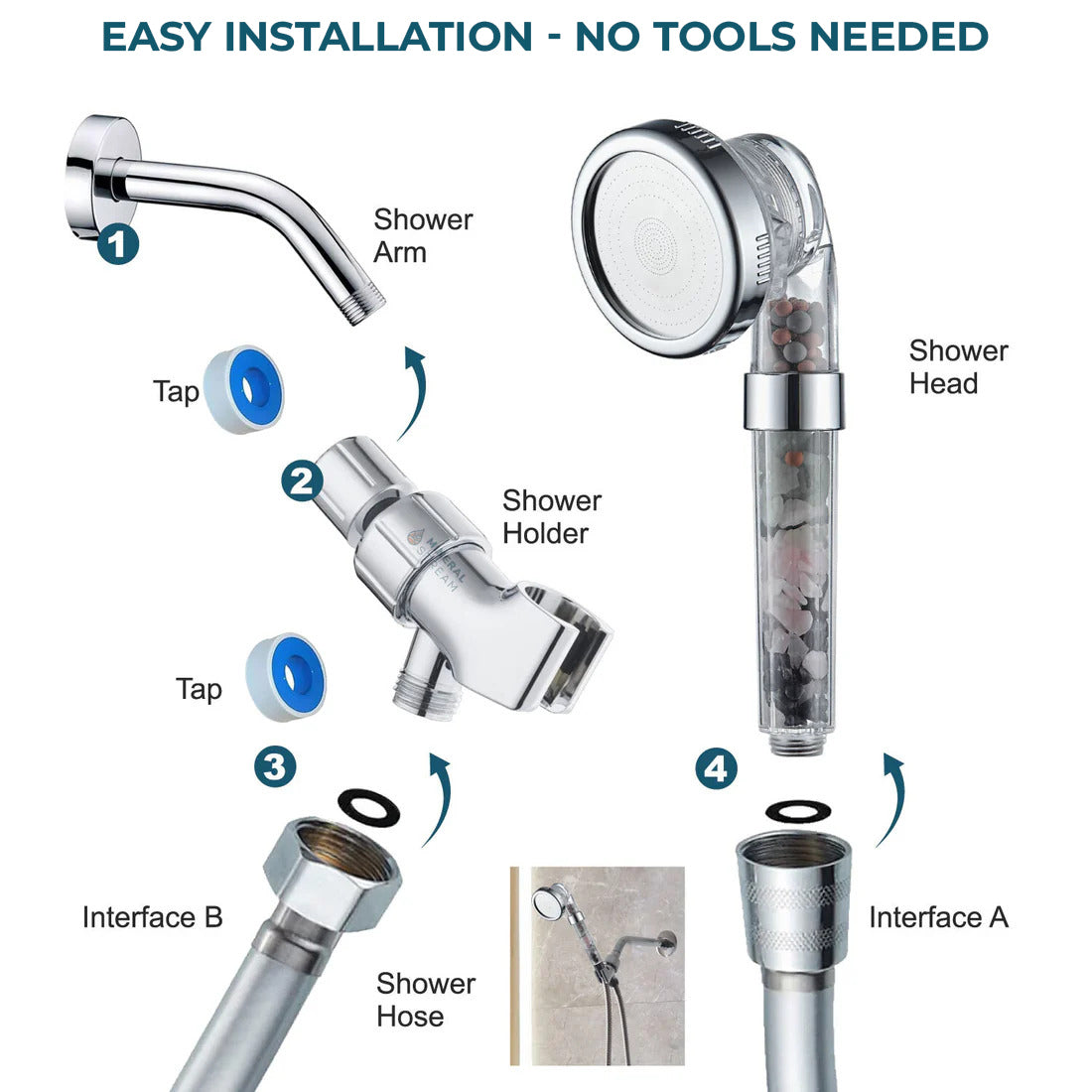

Essential Kit Installation

Prepare Shower Outlet: Remove old parts. Clean and apply plumber's tape clockwise to threads. Screw on mounting bracket (if applicable) and hand-tighten.

Connect Shower Hose: Attach hose (with washers) clockwise to the shower arm outlet and hand shower head. Hand-tighten both ends.

Install Shower Head Holder:

Suction Cup: Clean wall, press firmly for seal.

Test Setup: Place hand shower in holder. Turn on water and check for leaks.

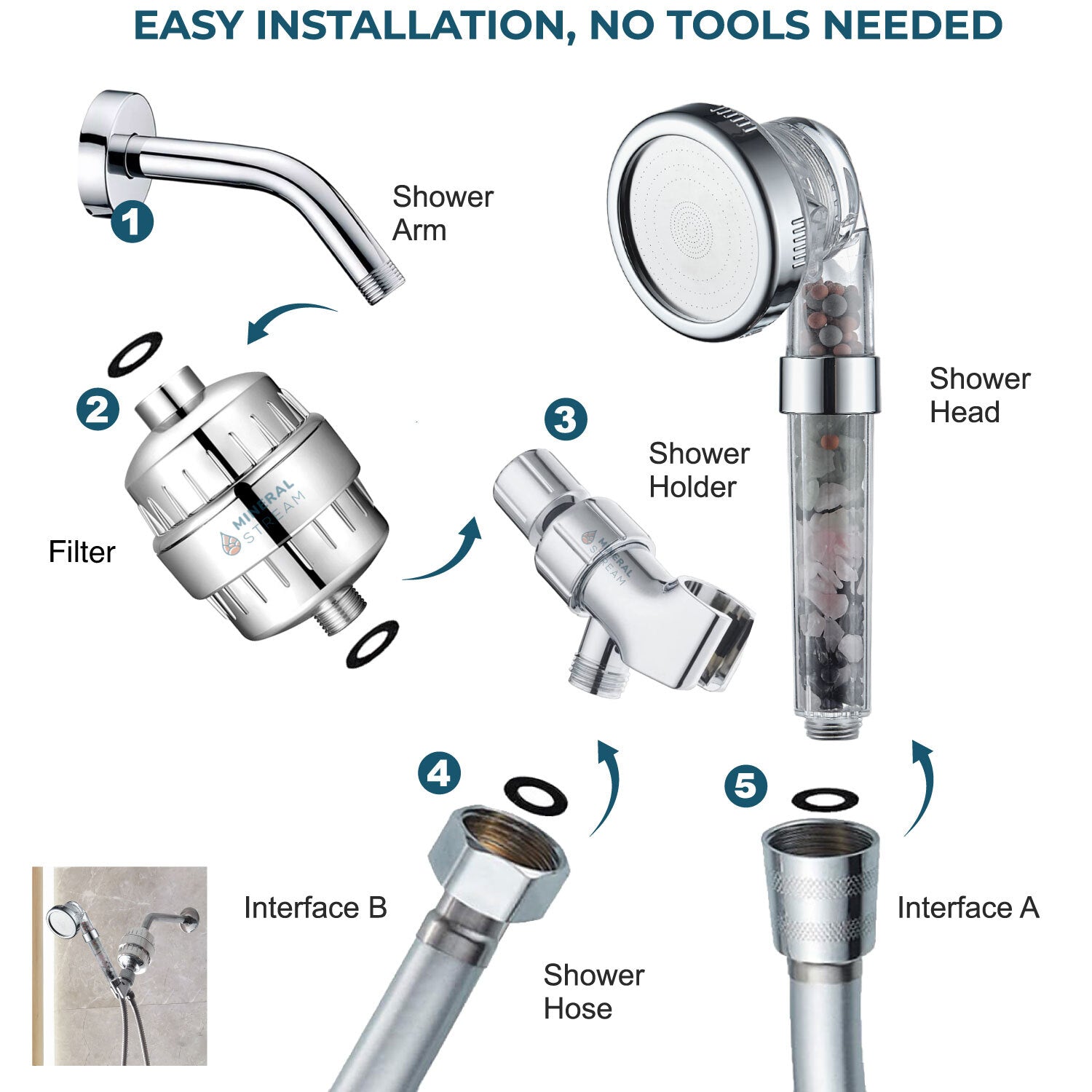

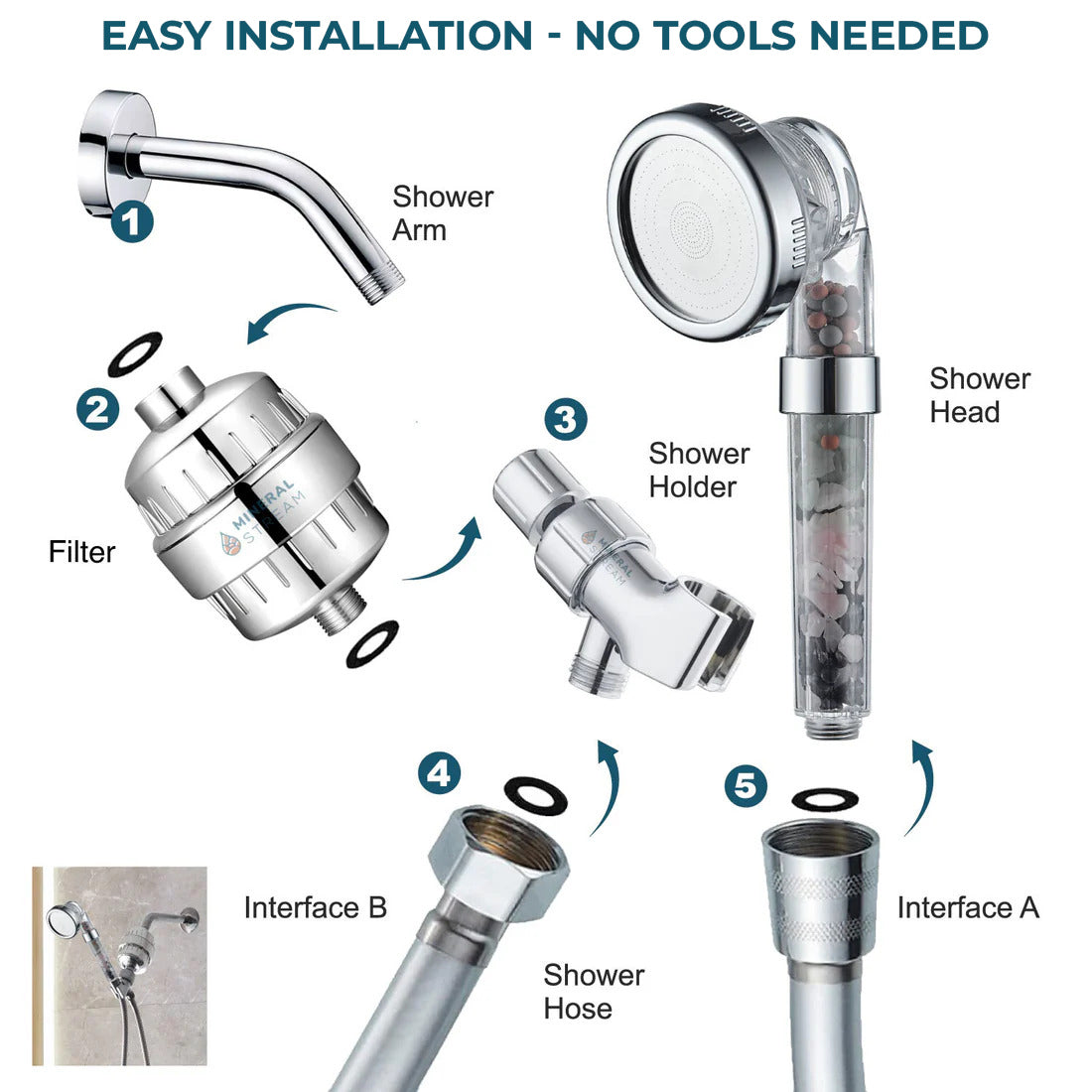

Complete Kit Installation

(Includes: Hand Shower Head, Holder, Hose, Hard Water Filter, and typically a new Shower Arm)

  1. Remove Old Fixtures: Unscrew and remove your old showerhead and (if applicable) shower arm.
  2. Install New Shower Arm: Apply plumber's tape clockwise to the new shower arm's threads. Screw the new Mineral Stream Shower Arm clockwise into the wall fitting and tighten securely.
  3. Attach Hard Water Filter: Apply plumber's tape clockwise to both the shower arm's end threads and the filter's inlet threads. Screw the Hard Water Filter onto the shower arm, noting flow direction, and hand-tighten.
  4. Connect Shower Hose: Ensure washers are present. Attach one end of the hose to the filter's outlet and the other end to your Mineral Stream Hand Shower Head.
  5. Test Setup: Place hand shower in holder. Turn on water and check all connections for leaks.

Enjoy your fully filtered and versatile shower!

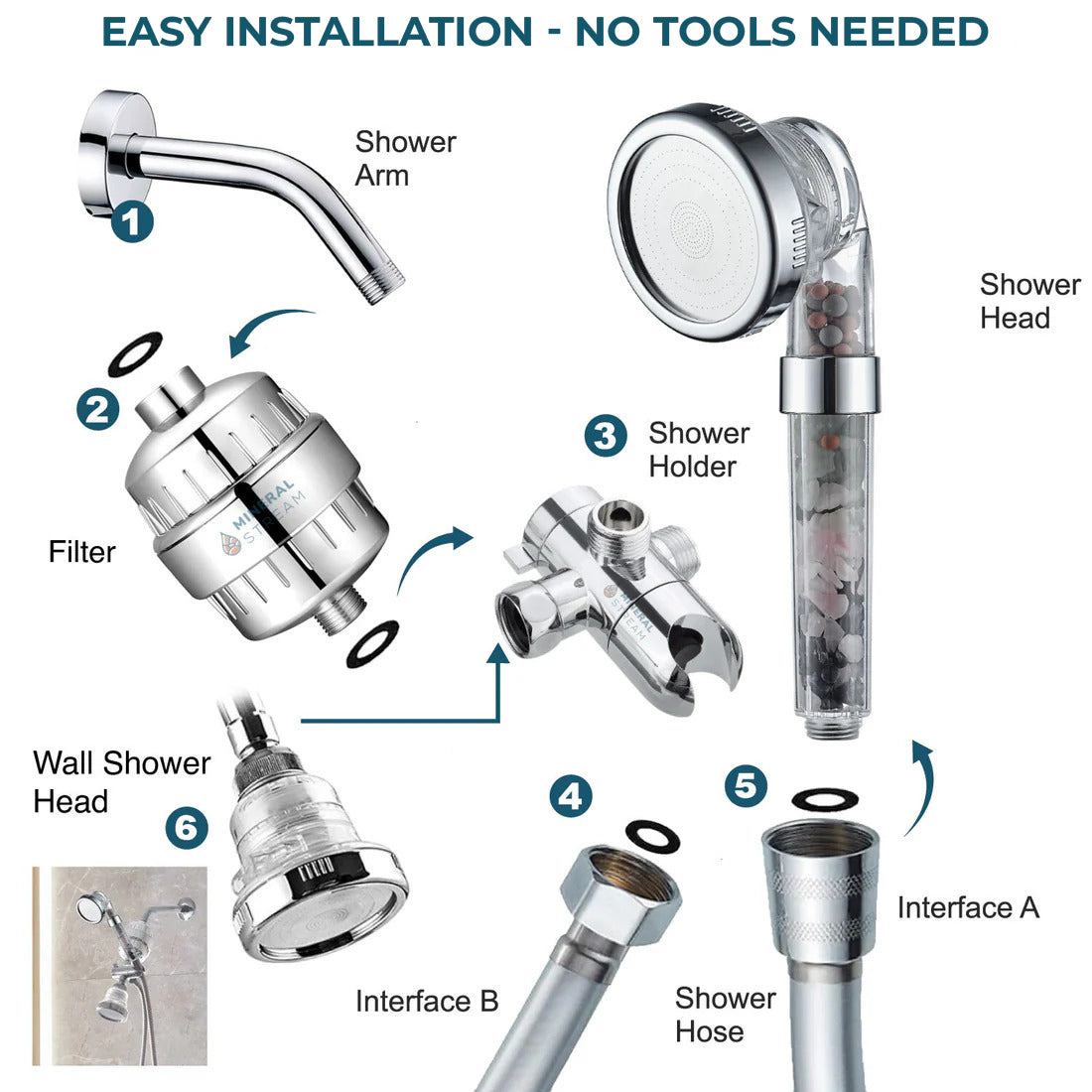

Dual Shower System Installation

(Includes: Hand Shower Head, 3-Way Diverter, Hose, Shower Arm (for fixed head), Hard Water Filter (often for handheld line), Wall Showerhead (fixed)

  1. Remove Old Head: Unscrew existing showerhead.
  2. Install Diverter: Tape shower arm threads, screw on diverter.
  3. Install Fixed Head: Tape one diverter outlet and new shower arm. Attach new arm to diverter, then fixed head to arm.
  4. Install Handheld Head & Filter: Tape second diverter outlet and filter inlet. Attach filter to diverter, then hose (with washers) from filter to handheld head.
  5. Install Holder: Place handheld holder.
  6. Test: Turn on water, test diverter.

Enjoy your dual system!

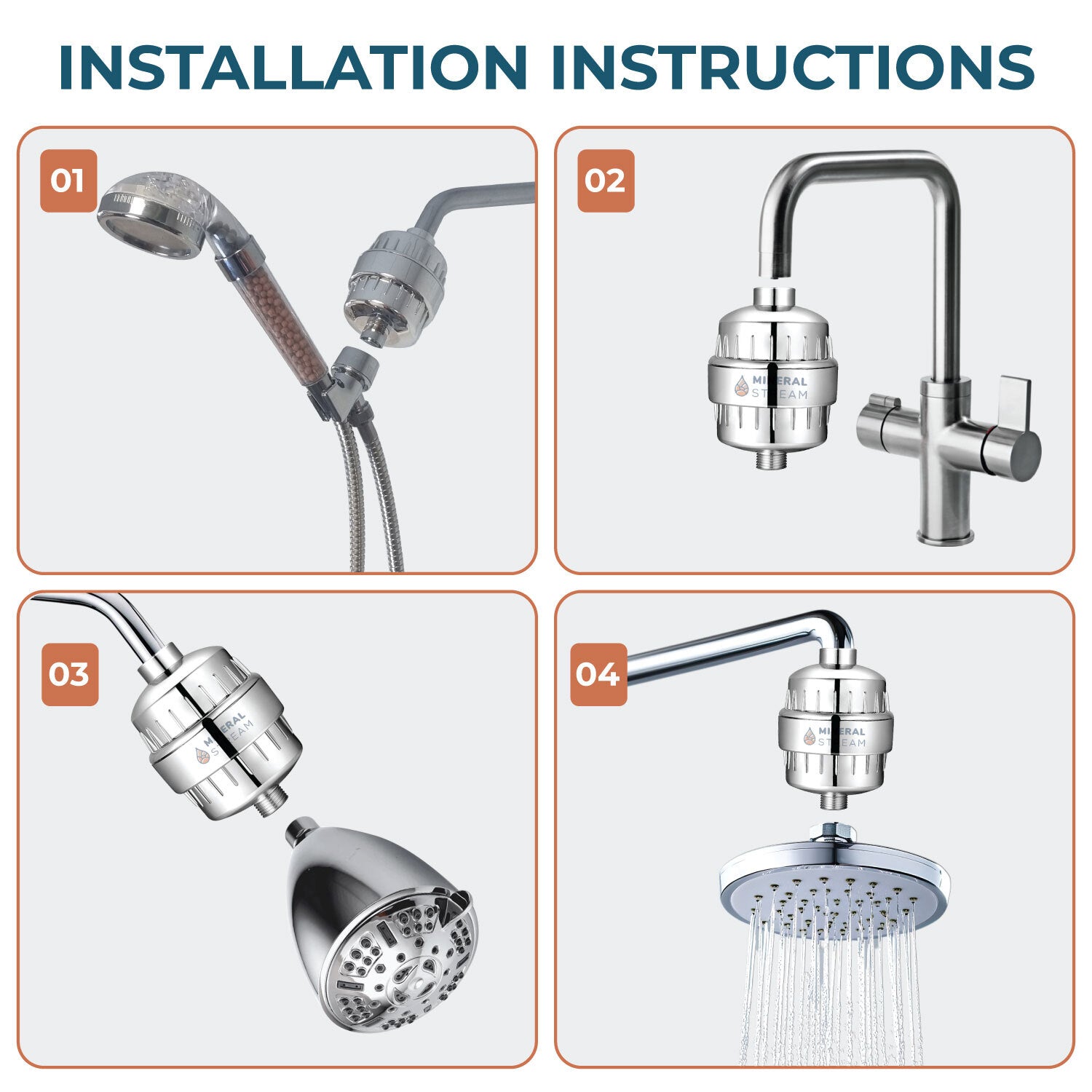

How to Install Your Mineral Stream Shower Filter

  1. Handheld Shower Head
     Unscrew the shower head from the hose. Attach the MineralStream filter between the hose and the shower head. Hand-tighten until secure.
  2. Kitchen/BathroomFaucet
     Remove the existing aerator from your faucet. Screw the MineralStream filter directly onto the faucet outlet. Hand-tighten until secure.
  3.  FixedWall-MountShowerHead
     Unscrew the shower head from the wall arm. Attach the MineralStream filter between the shower arm and the shower head. Hand-tighten until secure.
  4. Rainfall/OverheadShowerHead
     Unscrew the rainfall head from the ceiling or wall arm. Attach the MineralStream filter between the arm and the rainfall head. Hand-tighten until secure.

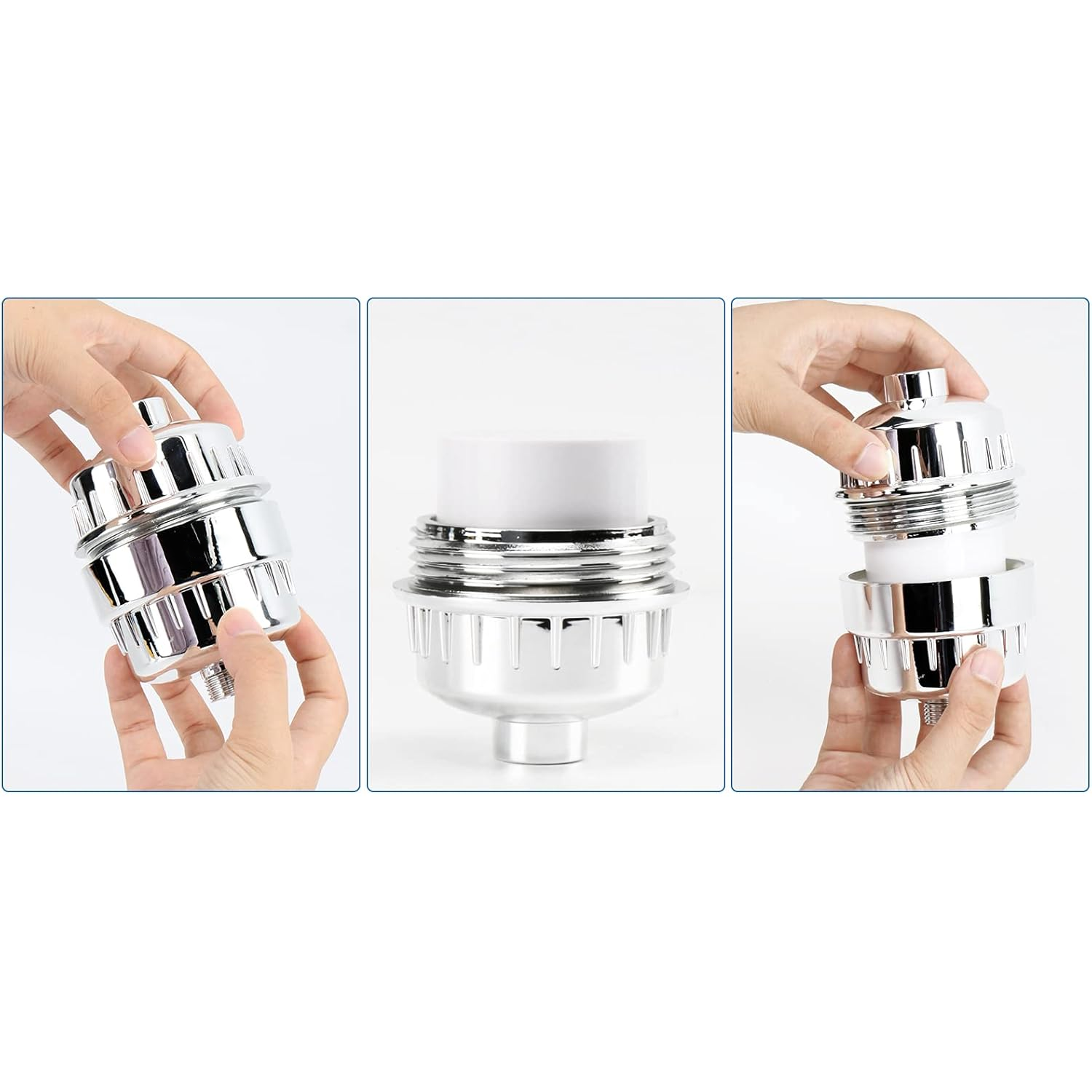

How to Install Your Mineral Stream Shower Replacement Filter

  1. Unscrew the Filter Housing
     Hold the shower filter firmly and twist the top cap counter-clockwise to open the housing.
  2. Remove& Replace the Cartridge
     Pull out the old filter cartridge. Insert the new replacement cartridge into the housing.
  3. Reassemble the Filter
     Place the top cap back on and twist clockwise until hand-tight. Your filter is ready to use.

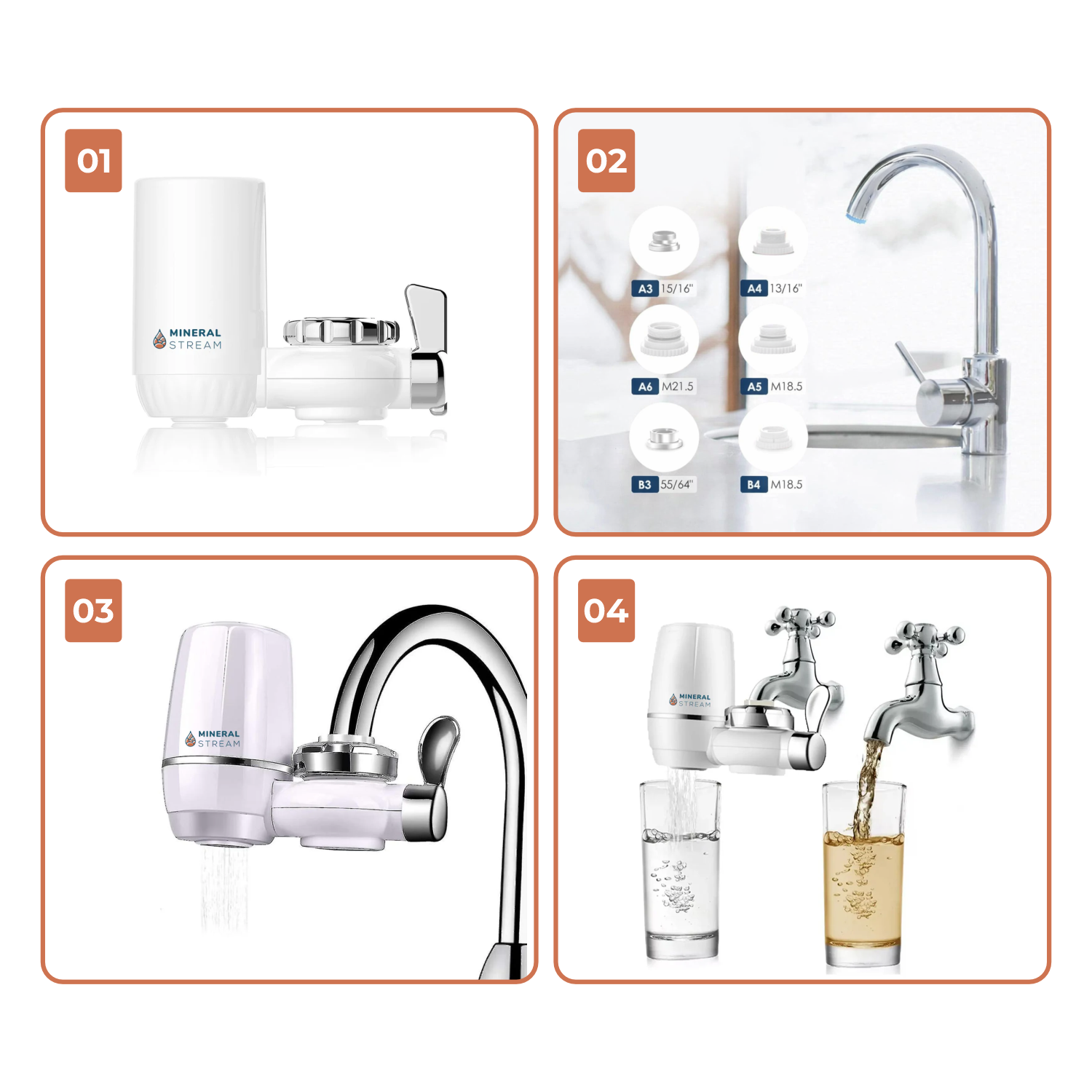

How to Install Your Mineral Stream Kitchen Faucet Filter

  1. What's in the Box
    Your MineralStream Advanced Faucet Filter comes with the filter unit, mounting clamp, and a diverter switch for filtered/unfiltered water.
  2. Choose the Right Adaptor
     Select the correct adaptor for your faucet size from the 6 included: - A3 (15/16") — A4 (13/16") — A5 (M18.5) — A6 (M21.5) — B3 (55/64") — B4 (M18.5)  Remove your faucet's existing aerator and screw on the matching adaptor.
  3. Attach the Filter to Your Faucet
     Slide the filter unit onto the adaptor and secure the mounting clamp. Turn on the tap to check for leaks. Use the diverter switch to toggle between filtered and unfiltered water.
  4. Clean, Filtered Water Instantly
     Your faucet filter is ready to use. Filtered water runs clear and clean — replacing the need for bottled water. Replace the filter cartridge every 3 months for best results.

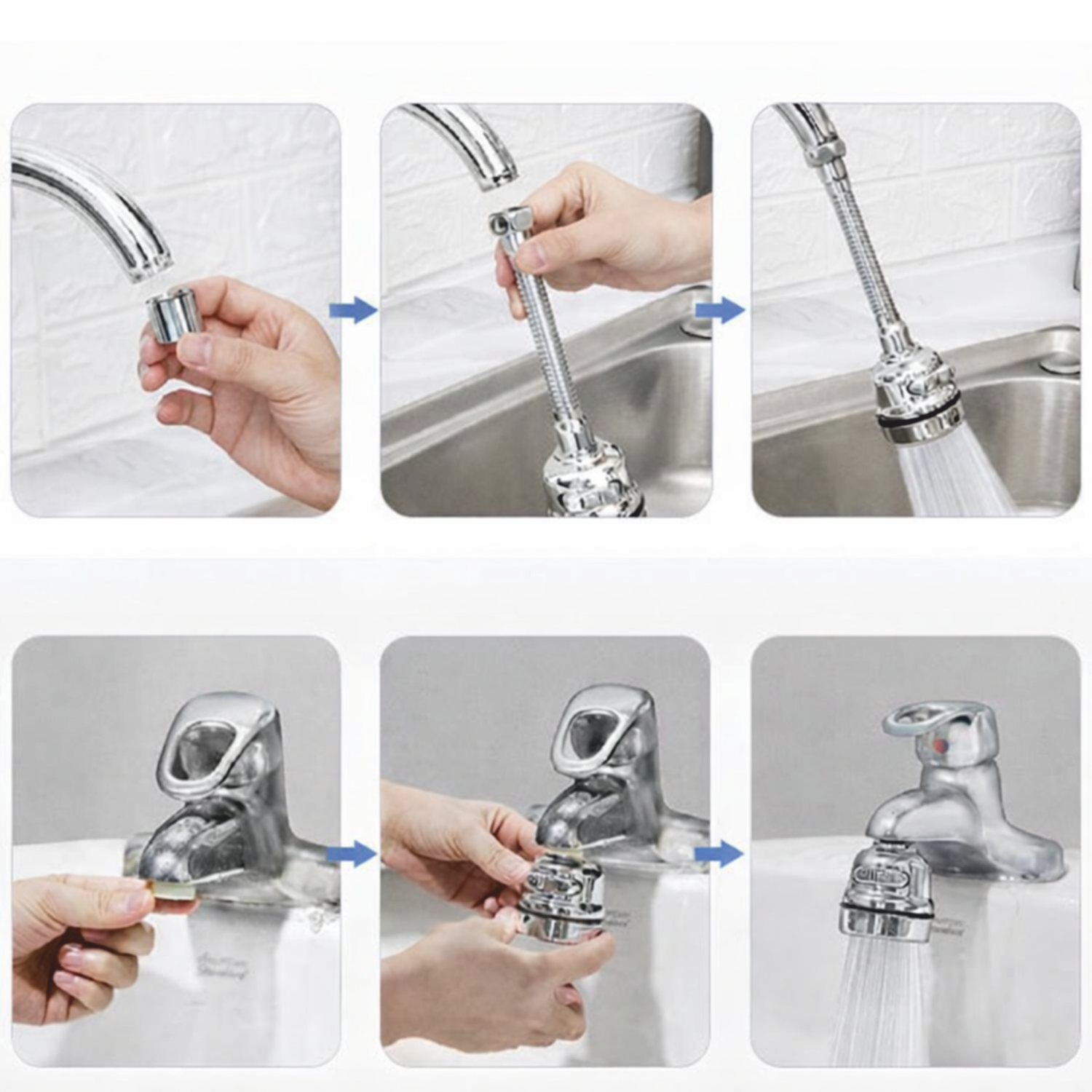

How to Install Your New MineralStream 360° Faucet

  • Remove: Unscrew your existing faucet tip (aerator) by hand or with a cloth-protected grip.
  • Attach: Screw the MineralStream unit directly onto your faucet, or attach the extension hose first if you're using it.
  • Tighten: Hand-tighten until secure. Do not use pliers or tools, as these can crack the housing or scratch the finish.
  • Test: Turn on the water. If it leaks, ensure the rubber washer inside the connector is sitting flat.
